Flame Proof Electric Wire Rope Hoists

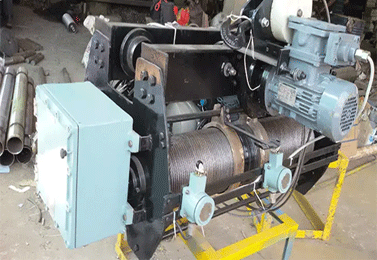

FLAME PROOF ELECTRIC WIRE ROPE HOISTS

The drive consists of flame proof motor, brakes, switches and push buttons. All electrical fittings are flame proof suitable for group I, IIA and IIB gases. Flame proof limit switches for extreme ends in horizontal and vertical movement. Flame proof local control panel and main incoming isolator with contactor, thermal over-load relays & MCBs.

Range Of Specifications:

  • Safe Working Load : 500 kgs. to 20,000 kgs.
  • Heights of Lift : As per customer specifications
  • Class of Duty / Standards : Equivalent to IS 3938
  • Speeds : Selected depending on client specifications / applications / shed dimensions
  • Crane Control : From floor through Pendant Push Buttons, Optionally through Radio Remote Control
  • Drive System : Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes
  • Motors : Squirrel Cage Induction Hoisting Motors with built-in fail safe brakes for Hoisting. Insulation Class for all motors B/F
  • Brakes : Built-in Brakes for Hoisting, Cross Travel Motions
  • Power Supply System : To Hoist and Cross Travel through Trailing Cables
  • Rope Drum : Fabricated from Seamless Pipes with grooves for proper seating of wire rope.
  • Frame : Fabricated from plates confirming to IS: 2062, Gr A, laser cut profile & duly finished in boring machine.
  • Gears & Pinions : Helical type, made from Alloy steel materials, duly hardened and tempered. Teeth cutting carried out after heat-treatment for smooth, less noise operation.
  • Bearings : Heavy duty ball bearings of reputed makes used on all rotating parts, grease packed.
  • Motors : S4, 150 Starts per hour, 40% CDF, crane duty Squirrel Cage motors as per IS: 325
  • Wire rope : As per IS: 2266 of reputed make suitable construction, factor of safety as recommended in IS: 3938.
  • Rope guide : Provided for guiding the rope along the axis of Rope slides & is easy to dismantle from rope drum.
  • Hook : Forged steel as per IS: 3815 supported on thrust bearing. Hooks as per IS: 15560 shall be offered on request.
  • Brakes : ACEM Disc brake provided for hoist and for Cross Traverse shall be provided on request.
  • Limit Switch : Normal roller type limit switch provided for over-hoisting & over-lowering.
  • Trolley Adjustment: Trolley easily adjustable for different beam sizes. Higher flange width shall be offered on request.

Optional Features :

  • CT Brake and CT Limit Switch
  • Panel for LT Drive
  • VFD for hoisting and cross traverse motion
  • Higher height of lifts
  • Different speeds for hoist and CT
  • Power supply systems
  • Shoe brake
  • Manual geared trolley, flexible trolley for negotiating radius of curvature, push-pull trolley

Range Of Specifications:

S.W.L.
Kgs.
Height of
lift in Mts.
No of
Falls
Speeds mpmMotors H.P.Flange Width of BeamWire Rope DiaDimension (m.m.)Approx. Wt in Kgs.
HoistingCTHoistingCTA(HR)BCDHI
500623.5120.750.2590-1506600175500700275375150
1000623.5121.50.5090-1508650175500850275375170
2000623.5123.00.50100-18010800200500980310400400
3000643.5125.00.50125-180108502256001150350450450
5000643.5125.00.50140-40010*10002257501250450450550
7500843.5127.50.75150-40012*120022585017005255001000
10000843.512100.75150-40014*130022585017005255001200
15000662.51212.51.0180-40014*1600300125018506506001600
20000663.512151.0180-400181800325125018506506002200

Note: We reserve the right to modify technical specifications, dimensions etc. as we continuously work on improvement

Last updated:06-Apr-2020 By Vinseo
